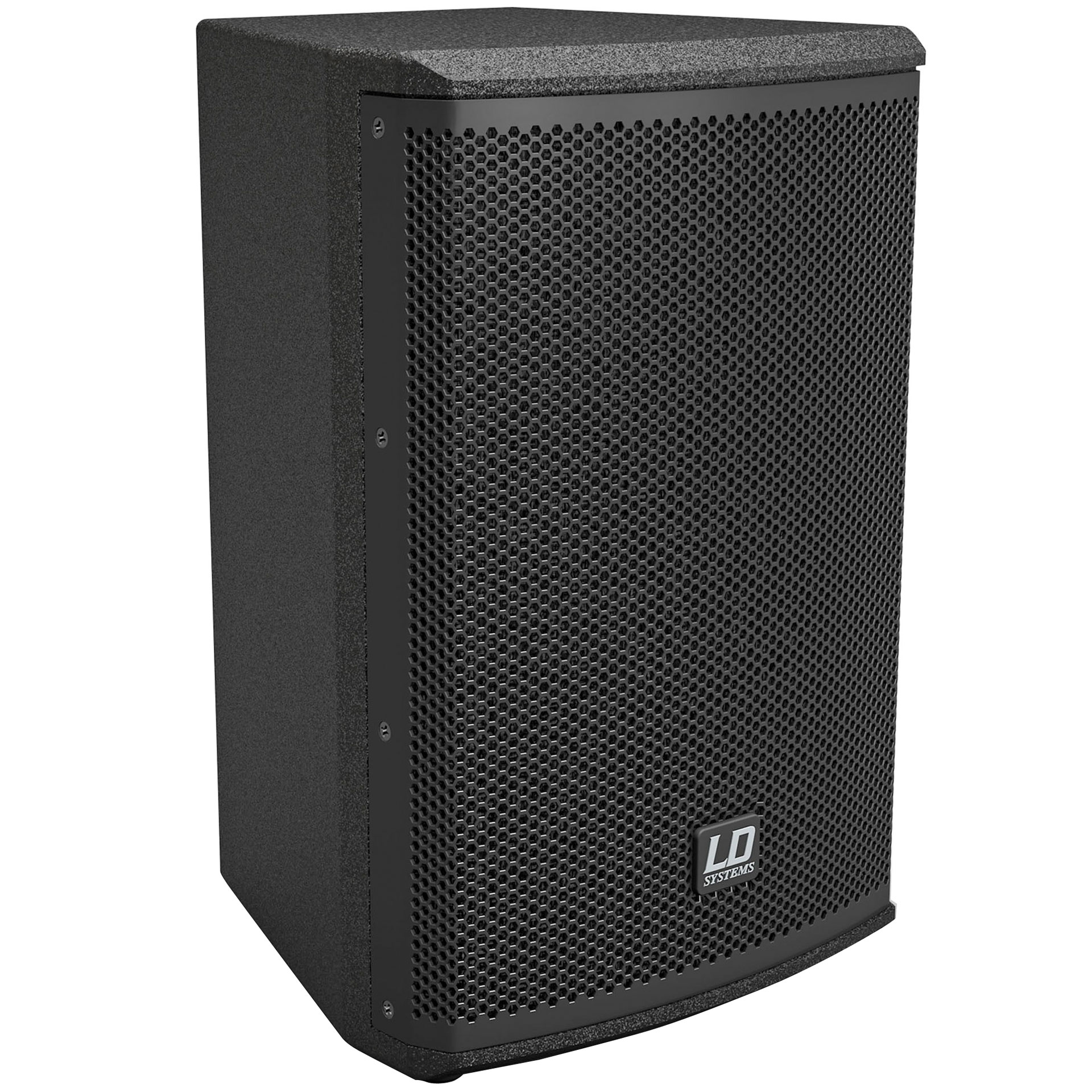

This passive 2-way loudspeaker has been designed as a companion to the active MIX 6 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

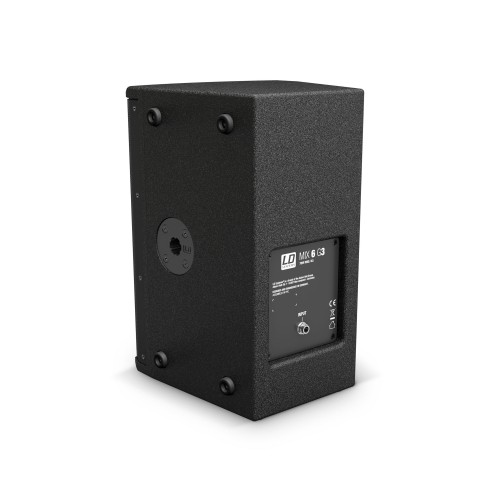

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. In a master-and-follower setup with the active unit, the MIX 6 G3 provides amazing performance and versatility in a lightweight, easily portable package.

General

Type

Passive

Power handling (Peak)

280 W

Power handling (RMS)

70 W

SPL (1 W/1 m)

90 dB

Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)

117 dB

Frequency response

80 - 20,000 Hz

Impedance

4 Ω

Speaker system

2-way system

Beam angle

Hor.: 80° / Vert.:70°

Number of inputs

1

Input connector types

6.3 mm Jack TRS

Colour

Black

Bass driver

Size

6.5 "

Outer diameter

165.1 mm

Tweeter

Driver size

1 "

Housing

Design

Bass reflex

Flange

16 mm flange

Cabinet material

Medium-density fibreboard MDF

Front grille material

Aluminium

Dimensions & weight

Width

214 mm

Height

323 mm

Depth

221 mm

Weight

4.4 kg
