Ref: YA MG12XUK

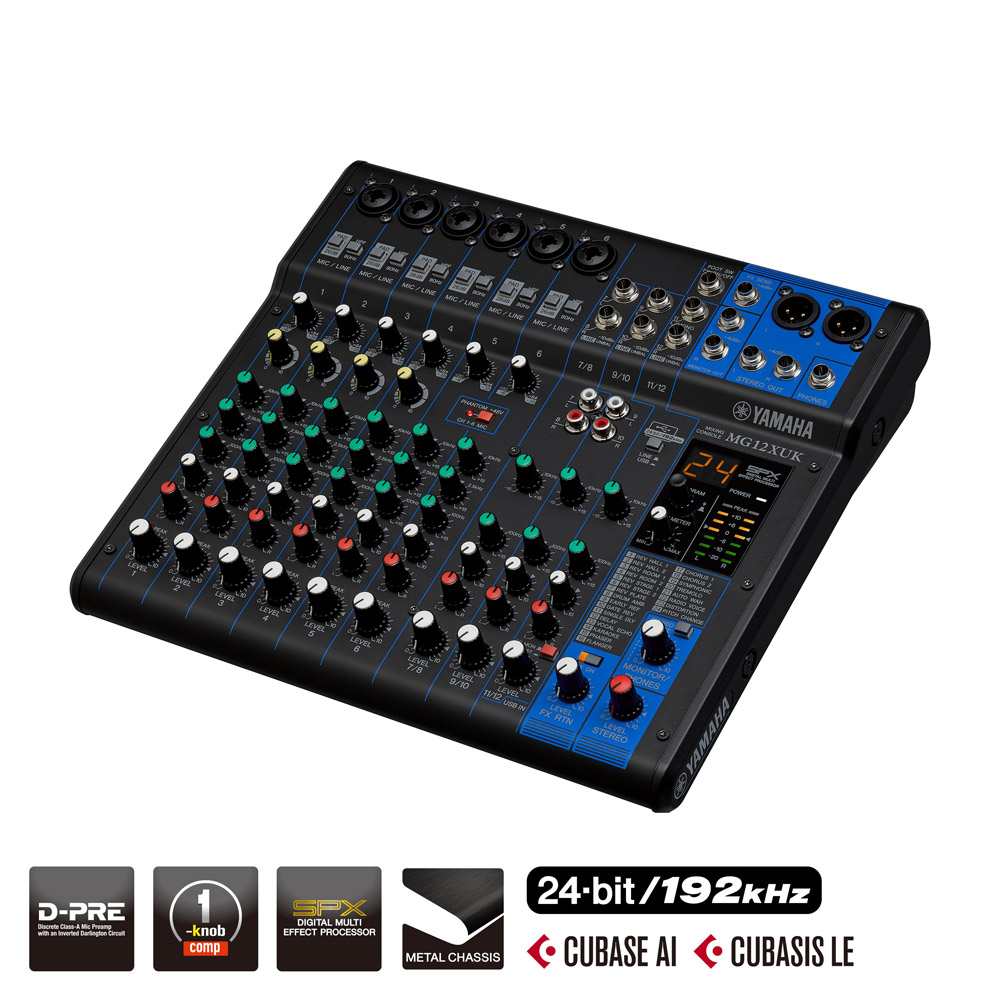

YAMAHA - MG12XUK

Ref: YA MG12XUK

YAMAHA - MG12XUK

12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)12-Channel Mixing ConsoleMax. 6 Mic / 12 Line Inputs (6 mono + 3 stereo)1 Stereo Bus1 AUX (incl. FX)“D-PRE” mic preamps with an inverted Darlington circuit1-Knob compressorsHigh-grade..." Leia mais

SOB CONSULTA

438,00

Menos
Mais
ADICIONAR

12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)

  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase Al DAW software download version
  • Cubasis LE for iPad available at App Store
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
  • Dimensions(W×H×D): 315 mm x 91 mm x 297 mm (12.4" x3.6" x11.7")
  • Net Weight: 3.0 kg (6.62 lbs.)



SPECS

Mixing capabilityOn-board processorsSPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/OPhantom power+48 V
Digital I/OUSB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input ChannelsMono[MIC/LINE]6
Mono/Stereo[MIC/LINE]-
Stereo[LINE]3
Output ChannelsSTEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND1
GROUP OUT-
BusStereo: 1, AUX[FX]: 1
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
COMP1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total harmonic distortion0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk-83 dB
Power requirementsPA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption22.9 W
DimensionsW315 mm (12.4")
H91 mm (3.6")
D297mm (11.7")
Net weight3.0kg(6.62 lbs)
AcessóriosIncluded Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5
OthersOperating Temperature: 0 to +40˚C
