A.I.R.port

Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

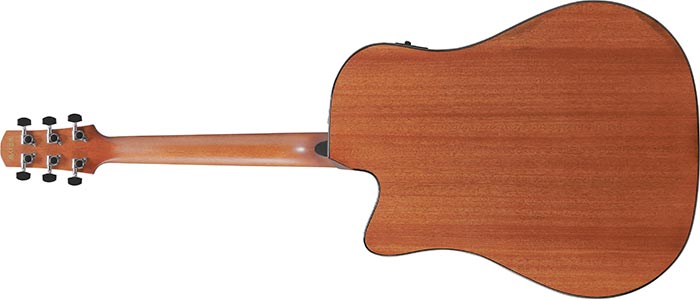

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

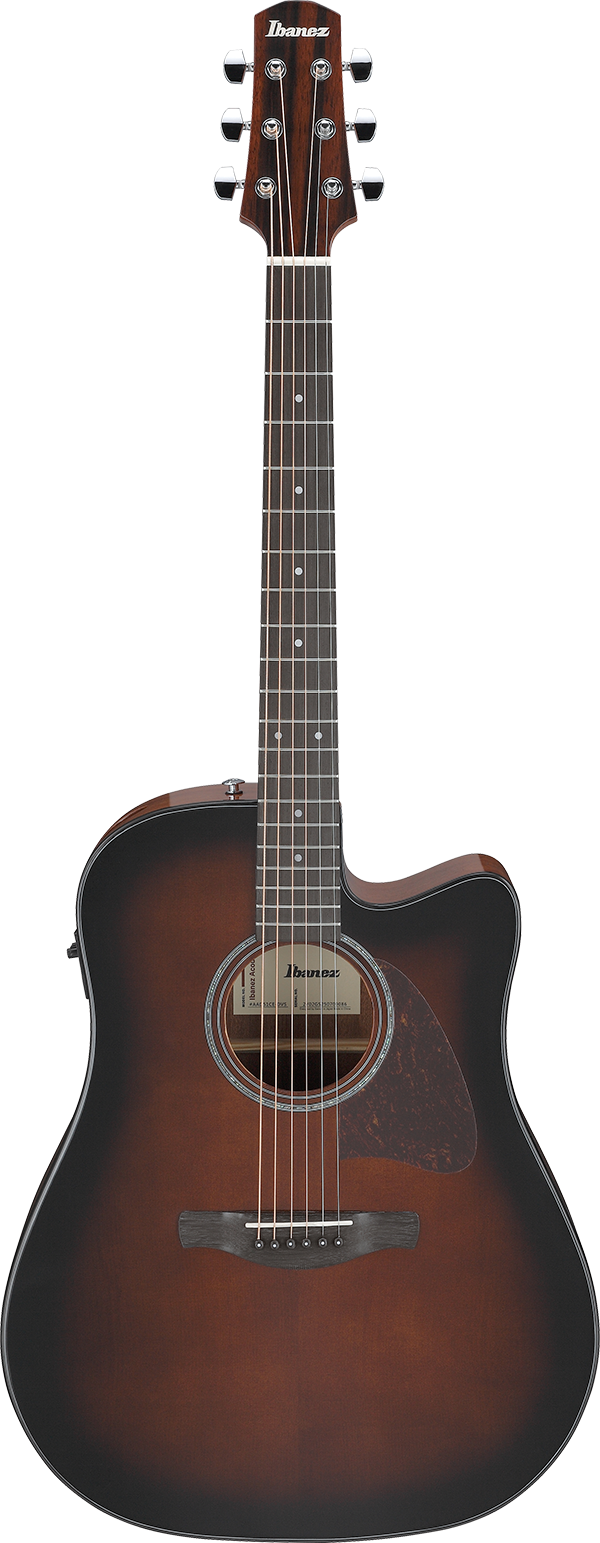

Grand Dreadnought body

Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.

X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

Advanced Access Cutaway

Its deep cutaway and shaved side enable amazing high fret access.

Low Oval Grip Okoume neck

The Low Oval neck grip facilitates easy chord strumming.

Functional Tapered Headstock

The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

Ibanez AEQ-TP2 preamp w/Onboard tuner

The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

Purpleheart bridge

The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

body shape: Grand Dreadnought with Advanced Access Cutaway body

bracing: X-M Bracing

top: Solid Sitka Spruce top

back & sides: Sapele back & Sapele sides

neck: Low Oval GripOkoume neck

fretboard: Purpleheart fretboard

bridge: Purpleheart bridge

body binding: Rounded body edge binding

inlay: White dot inlay

soundhole rosette: Abalone rosette

tuning machine: Chrome Die-cast tuners (18:1 gear ratio)

number of frets: 20

bridge pins: Ibanez Advantage™

strings: D'Addario® EXP16

string gauge: .012/.016/.024/.032/.042/.053

string space: 11mm

factory tuning: 1E,2B,3G,4D,5A,6E

pickup: Ibanez T-bar Undersaddle

preamp: Ibanez AEQ-TP2 preamp w/Onboard tuner

output jack: Balanced XLR & 1/4" outputs

battery: 9V x1
