Ref: ZO L6MAX
Ref: ZO L6MAX

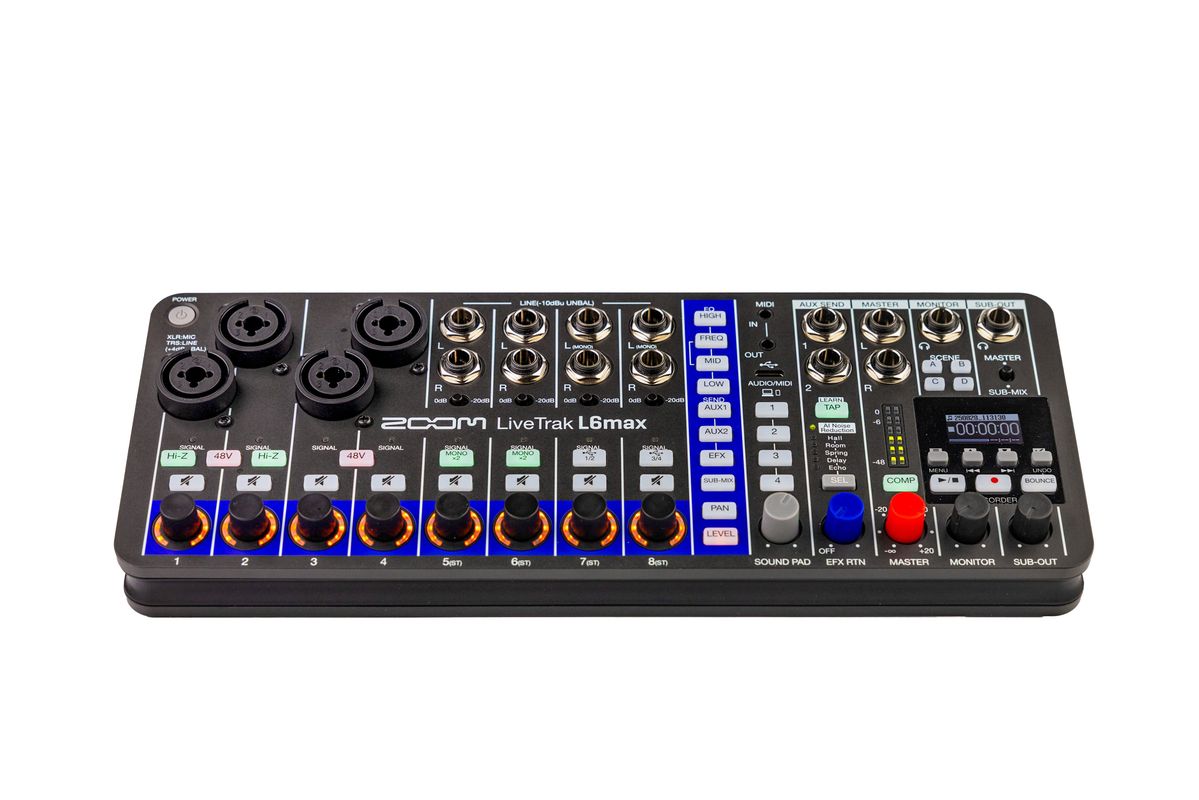

Big Mixer EnergyThe LiveTrak L6max is packed with all the features you’d expect from a full-size mixer, plus a multi-track recorder. It’s compact, battery powered, and ready to be the centerpiece of your live show, rehearsal, or podcast.Small Enough for a Duo,Big Enough for a BandWhether you are a full-band,..." Leia mais
Big Mixer Energy
The LiveTrak L6max is packed with all the features you’d expect from a full-size mixer, plus a multi-track recorder. It’s compact, battery powered, and ready to be the centerpiece of your live show, rehearsal, or podcast.
Small Enough for a Duo,
Big Enough for a Band
Whether you are a full-band, an acoustic duo, or a solo performer, the L6max is ready. With 4 combo inputs (including 2 with Hi-Z) and 8 line inputs, its 12 channels offer the flexibility you need for any session.
Custom Monitoring Options
Two headphone outputs with a customizable Sub-Out mix lets you monitor exactly what you need, wherever you are on stage.
High-Output Ready
Channels 5-8 include a -20 dB PAD switch so you can handle loud sources such as vintage synths and Eurorack modules.
No attenuator required.
OLED Display
The high-contrast OLED display helps you create projects and adjust settings with ease.
14 Tracks of Recording
Capture up to 12 individual tracks plus a stereo mix directly to SD cards up to 2TB. Projects can be saved and recalled for mixing anytime.
Unlimited Overdubbing
You can mix and bounce tracks to the dedicated ‘bounce track' freeing up additional channels to keep adding layers. If the bounce doesn’t hit the mark, ‘undo’ it and try again. Even after a bounce, individual tracks are saved to the SD card for future mixing.
AI Noise Reduction
Turn on AI Noise Reduction and let the L6max intelligently remove hum, hiss, and background noise - while preserving every detail of your voice and instruments.
Let's Get Loud
For huge drums and loud guitar solos, the L6max records clip-free audio in 32-bit float. Channels 1-4 have dual-AD converters, keeping mic signals pristine across extreme dynamics.
Customize with the
L6 Editor App
The free L6 Editor app for Mac and Windows lets you customize pads, effects, and MIDI assignments with ease.
Stay Powered,
Stay Mobile

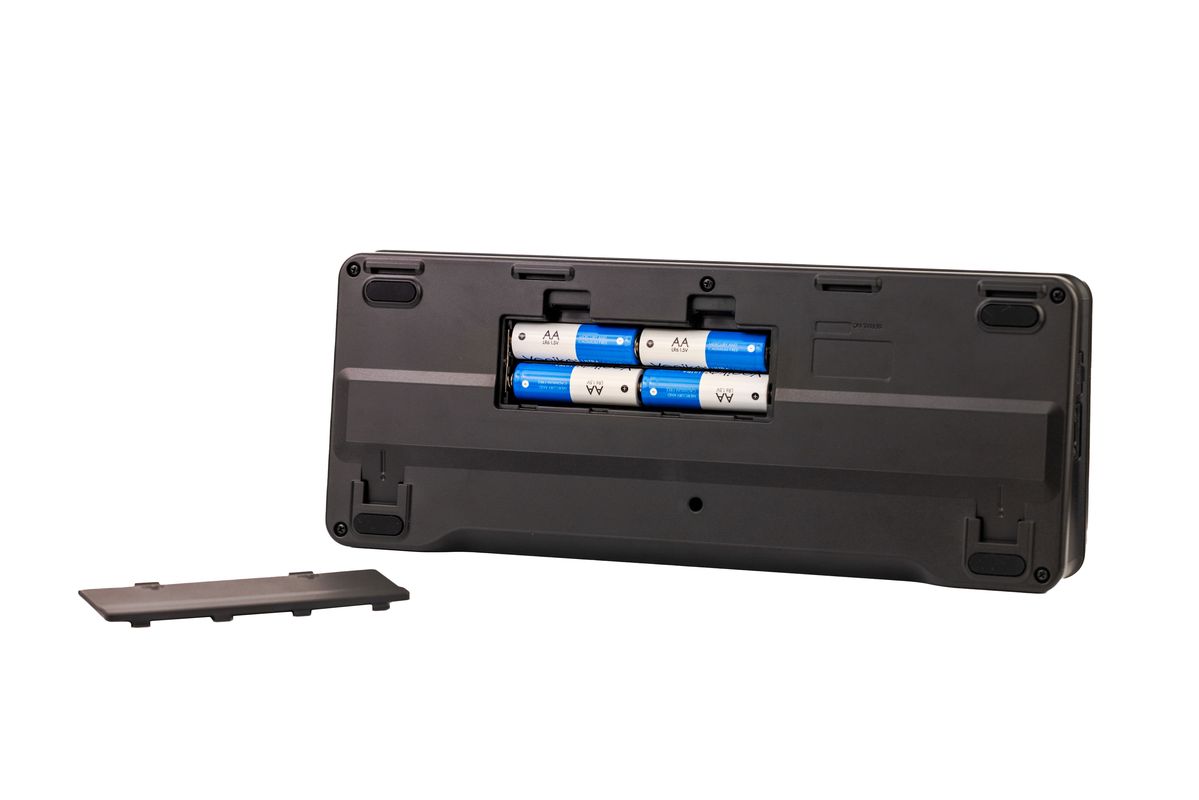

Power the L6max via AA batteries, USB bus power, or a mobile battery pack.
Euro Rack Integration
Add the optional ERL-6 rack mount adapter to install the L6max in a Euro Rack setup and power your modular rig.
| Inputs | MIC/LINE (mono) | 4 |
|---|---|---|
| LINE (stereo) | 4 | |
| Outputs | AUX SEND (mono) | 2 |
| MASTER (stereo) | 1 | |
| MONITOR (stereo) | 1 | |
| SUB-OUT (stereo) | 1 |
| MIC/LINE | Connectors | 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
|---|---|---|
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | XLR: 3.8 kΩ or more | |
| TRS: 18 kΩ or more (when Hi-Z off) / 1 MΩ or more (when Hi-Z on) | ||
| Maximum input level | XLR: +4 dBu | |
| TRS: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 20 mA or less | ||
| LINE | Connectors | 8 TS phone jacks |
| Input impedance | 30 kΩ or more | |
| Maximum input level | +4 dBu (when PAD is 0 dB) | |
| +24 dBu (when PAD is -20 dB) |
| AUX SEND | Connectors | 2 TRS phone jacks (impedance balanced) |
|---|---|---|
| Maximum output level | +9.5 dBu | |
| Output impedance | 147 Ω | |
| MASTER | Connectors | 2 TRS phone jacks (balanced) |
| Maximum output level | +15 dBu | |
| Output impedance | 147 Ω | |
| MONITOR / SUB-OUT | Connector | TRS phone jack |
| Maximum output level | 50 mW + 50 mW (63 Ω load) | |
| Output impedance | 14.7 Ω |
| MASTER | 1 |
|---|---|
| SUB-MIX | 1 |
| AUX SEND | 2 |
| SEND EFX | 1 |
| EQ | HIGH | 10 kHz, ±15 dB, shelving |
|---|---|---|
| MID | 100 Hz – 8 kHz, ±15 dB, peaking | |
| LOW | 100 Hz, ±15 dB, shelving |
| 6 segments |
| 6 types |
| Maximum simultaneous recording tracks | 14 |
|---|---|
| Maximum simultaneous playback tracks | 14 |
| Recording formats | 48 kHz, 32-bit float, mono/stereo WAV |
| Recording media | microSDHC memory cards (Class 10 or higher) |
| microSDXC memory cards (Class 10 or higher) |
| 128×64 OLED |
| Numbers of inputs and outputs | Input: 14 channels |
|---|---|
| Output: 4 channels | |
| Sampling frequency | 48 kHz |
| Bit depth | 32-bit float / 24-bit |
| Interface | USB 2.0 |
| Class | Mass storage class USB 2.0 High Speed |
|---|
| 48 kHz |
| 20 Hz – 20 kHz, −1.0 dB / +0.5 dB |
| -120 dBu or less (IHF-A) at 150Ω input |
| 4 AA batteries | Alkaline, Lithium, or Rechargeable NiMH |
|---|---|
| AC adapter | ZOOM AD-17 : DC 5V/1A |
| • USB bus power is supported. |
| Alkaline batteries | About 1.5 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 2.5 hours |
| Lithium batteries | About 5 hours |
14-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
| Power consumption | 5 W maximum |
|---|---|
| Dimensions | 284 mm (W) × 114 mm (D) × 46.5 mm (H) |
| Weight (main unit only) | 673 g |
| Weight (including batteries) | 767 g |
Note: 0 dBu = 0.775 Vrms
