SPECS

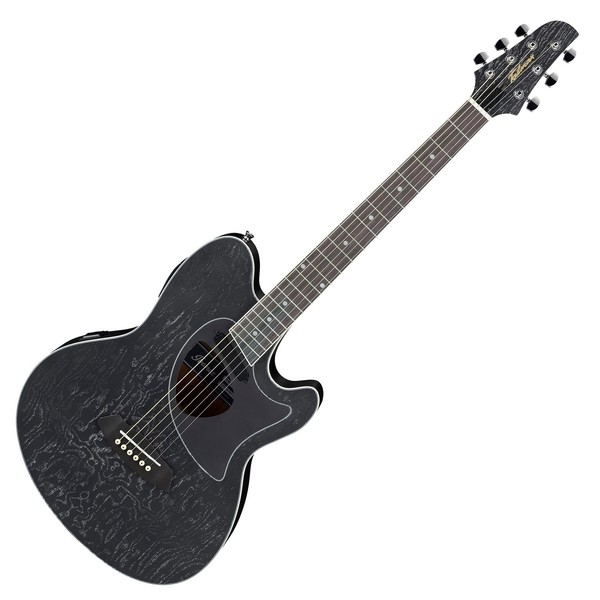

body shapeTalman Double Cutaway body

topFigured Ash top

back & sidesSapele back & Sapele sides

neckTCMOkoume neck

fretboardPurpleheart fretboard

bridgePurpleheart bridge

inlayWhite dot inlay

soundhole rosetteBasswood marquetry

tuning machineChrome Die-cast tuners

number of frets20

bridge pinsIbanez Advantage™

string gauge.012/.016/.024/.032/.042/.053

string space11mm

factory tuning1E,2B,3G,4D,5A,6E

pickupIbanez AP2 Magnetic

preampIbanez AEQ-2TM preamp w/Onboard tuner

output jack1/4" output

battery9V x1

NECK DIMENSIONS

Scale :650mm/25.6"

a : Width42mm at NUT

b : Width54mm at 14F

c : Thickness21.5mm at 1F

d : Thickness23.5mm at 7F

Radius :250mmR

BODY DIMENSIONS

a : Length18 1/8"

b : Width14 3/8"

c : Max Depth3 5/8"

PREAMP

TCM50's preamp diagram
