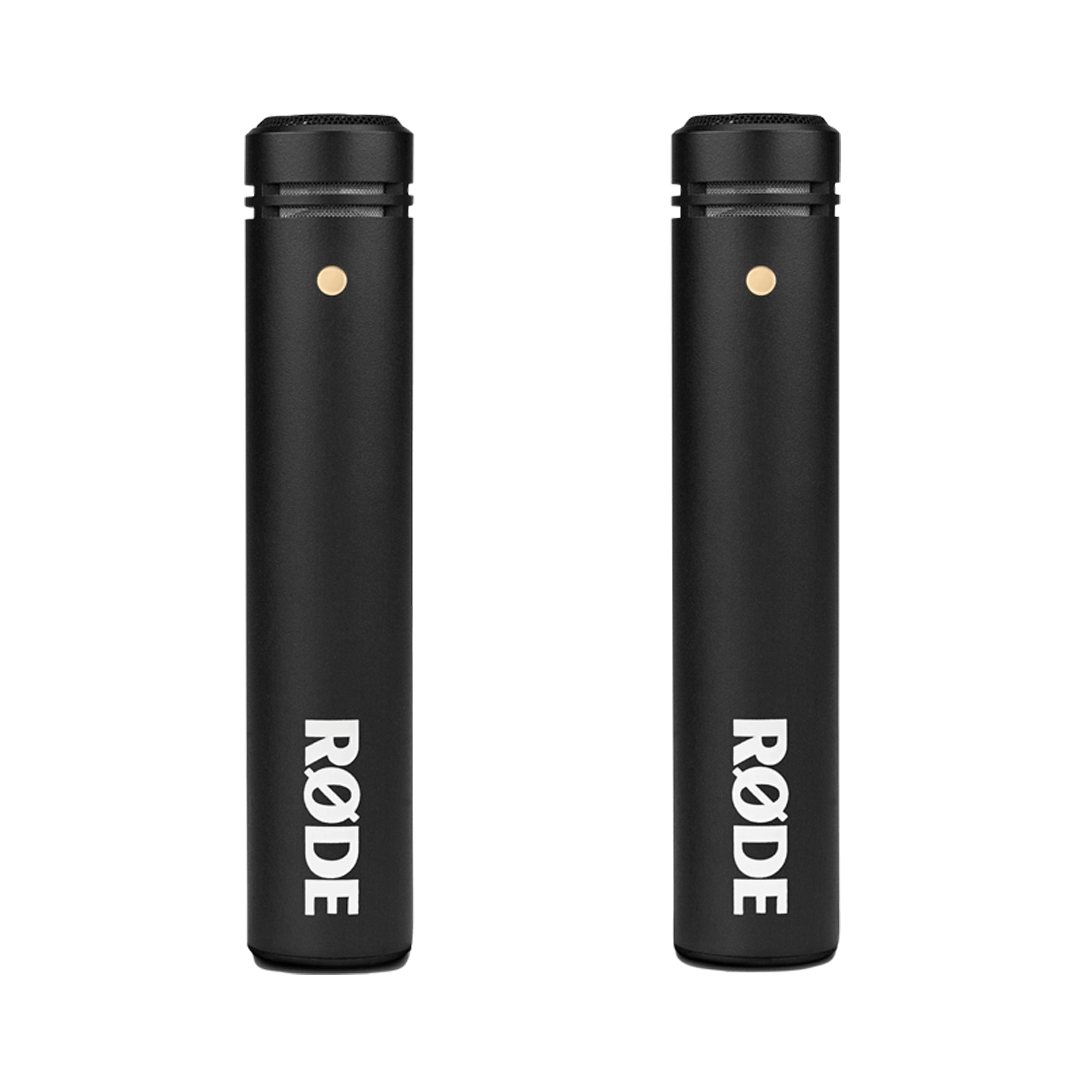

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm ('pencil') condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.

• Matched of pair small-diaphragm cardioid condenser microphones
• 1/2-inch gold-sputtered capsules
• Carefully selected pair with no more than 1dB sensitivity variation
• Very low noise and full frequency response

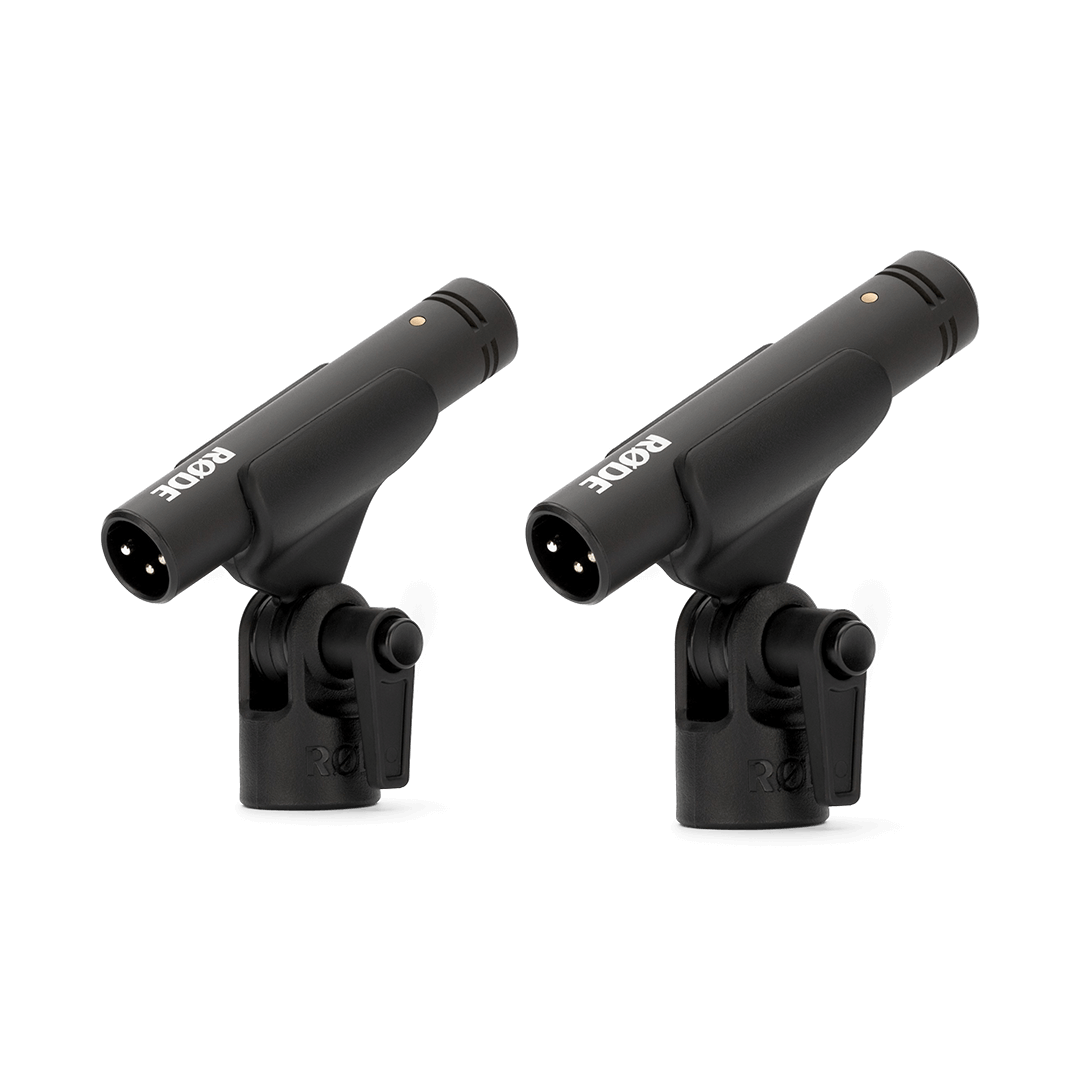

• Includes microphone clips and windshields

Acoustic Principle

Pressure Gradient

Active Electronics

JFET impedance converter with bipolar output buffer

Polar Pattern

Cardioid

Frequency Range

20Hz ~ 20kHz

Output Impedance

200Ω

Equivalent Noise

19 dBA SPL (as per IEC651)

Maximum Output Level

+13.5 dBu

Sensitivity

-34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz

Dynamic Range

121 dB SPL

Maximum SPL

140 dB SPL

Signal-to-noise Ratio

75 dBA SPL (as per IEC651)

Power Requirements

P24 and P48

Output Connection

XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
