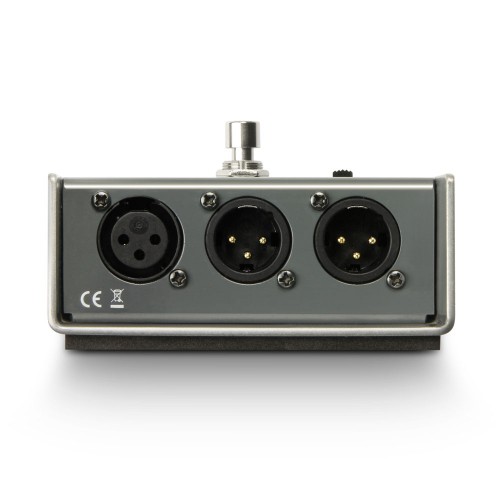

The Palmer DMS (Dynamic Mic Switcher) routes a microphone signal to two footswitch-selectable outputs.

The Palmer DMS is a passive unit for dynamic microphones only. The switch is instantaneous and is operated via a footswitch.

The DMS provides a wide range of applications :

• Switch your vocal mic between the FOH and monitor mixing desks to communicate with the monitor mixer or the band on stage.
• Two different sound configurations: to switch between different effects or sounds on your microphone, e.g. a "telephone effect" or more levels of reverb. Run the outputs of the DMS into two channels of the mixing desk, that you can configure
• differently. Now you can freely toggle between them on-stage at any time.
• You can also use the DMS to route the signal to two rooms or zones and select either one.

Product type

Splitters

Type

passive

Split type

1 in 2

Channels

1

Number of inputs

1

Input connectors

XLR

Max. input level

n.a. dB

Number of split-outputs per canal

2

THRU outputs/channel

0

Max. output level

n.a. dB

Output connectors

XLR

Transformer isolated outputs

No

Controls

footswitch, ground lift, input pad

Cabinet material

sheet steel

Cabinet surface

Powder coated

Width

100 mm

Depth

120 mm

Height

60 mm

Weight

0,65 kg
