Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

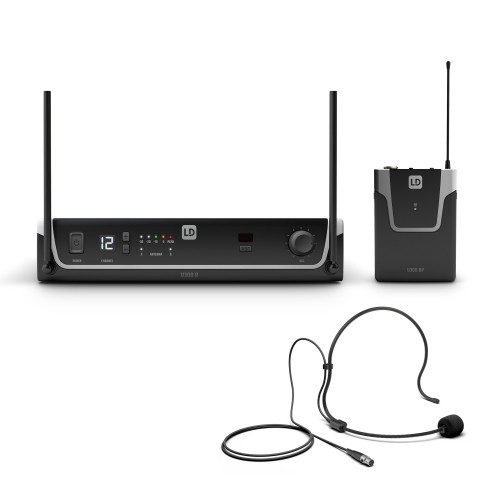

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

General

• Product typeWireless Microphone Systems
• TypeSet
• Transmission frequency range584 - 608 MHz
• Weight0,85 kg

LDU305BP - LD Systems U305 BPH Bodypack transmitter

• Product typeWireless Microphone System Accessories
• TypeBodypack
• Frequency response25 - 16,000
• Transmission frequency range584 - 608 MHz
• Channels12
• Groups1
• InputsMini-XLR (Phantom Powered Low-Z / High-Z Instrument)
• Signal-to-noise ratio104 dB
• Rated HF output power10 mW
• ControlsPower On/Off
• IndicatorsPower LED (Power ON: green)
• Operating voltage2 x AA battery
• Operating time>10 h
• Width65 mm
• Weight0,085 kg
• Height91 mm
• Depth25 mm
• Other featuresPilot tone

LDU305R - LD Systems U305 BPH Receiver

• Product typeWireless Microphone System Accessories
• TypeReceivers
• Modulation TypeFM
• Frequency response25 - 16,000
• Transmission frequency range584 - 608 MHz
• Channels12
• Groups1
• Antenna inputs2 x fixed
• Signal-to-noise ratio104 dB
• Noise reductionSquelch
• Transmission optimizationPilot tone
• Total Harmonic Distortion (THD)< 0.3 %
• Controlsvolume
• IndicatorsLC display
• Audio output, balancedXLR
• Operating voltage12 V DC - 18 V DC (500 mA), external power supply
• Audio output, unbalanced6.3 mm jack, switchable unbalanced output level
• Width211 mm
• Accessories (included)Power supply
• Weight0,7 kg
• Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
• Height43 mm
• Depth120 mm
• Other featuresIR frequency synchronisation

LDWS100MH1 - LD Systems U305 BPH Headset

• Product typeWireless Microphone System Accessories
• TypeHeadsets
• Frequency response20 - 20.000
• DirectivityCardioid
• Nominal impedance680 Ohm(s)
• Phantom power requierements5 V
• Microphone inputMini-XLR (3-pin, female)
• Accessories (included)Foam windscreen
• Weight0,049 kg
